Liner Hanger Systems

Hydraulic and mechanical set liner hangers, liner top packers, and expandable systems

close-up render of a portion of a SLB liner hanger

Liner hangers and liner top packers to improve completion well construction design and operations

Well trajectory complexity, depth, pressure, temperature, and cost have increased the challenges of well construction design, planning, and operations. Long horizontal laterals in unconventional shale wells, liner drilling, extended reach wells, cemented and uncemented liners require high-performance liner hanger systems capable of: rotation to reach total depth, robust setting mechanisms tolerant of higher solids content, liner top packer sealing elements which can survive run in hole, circulating and cementing at higher rates to lift and homogenize the mud around the liner, all while controlling the equivalent circulating density (ECD) to avoid approaching the fracture gradient and damaging the formation. Once set on depth, seal integrity must be maintained through high-pressure fracturing operations in the case of some uncemented liner applications and years of pressure and thermal cycling during production.

Reduce costs and speed up well construction from deep water to land

Enhance well integrity and reduce costs in well construction with a full line of liner hanger systems, equipment, and accessories for conventional and complex well applications on land or offshore. Backed by a track record of more than six decades, SLB liner hangers, liner top packers, and mechanical and hydraulic set and release running tools are engineered to suspend, support, isolate, seal, and anchor in all types of applications and environments.

With a range of available liner hanger equipment and services, Xcelis™ high-performance liner hanger systems excel in the most challenging environments, and COLOSSUS™ liner hanger systems provide versatile option to suit various well conditions.

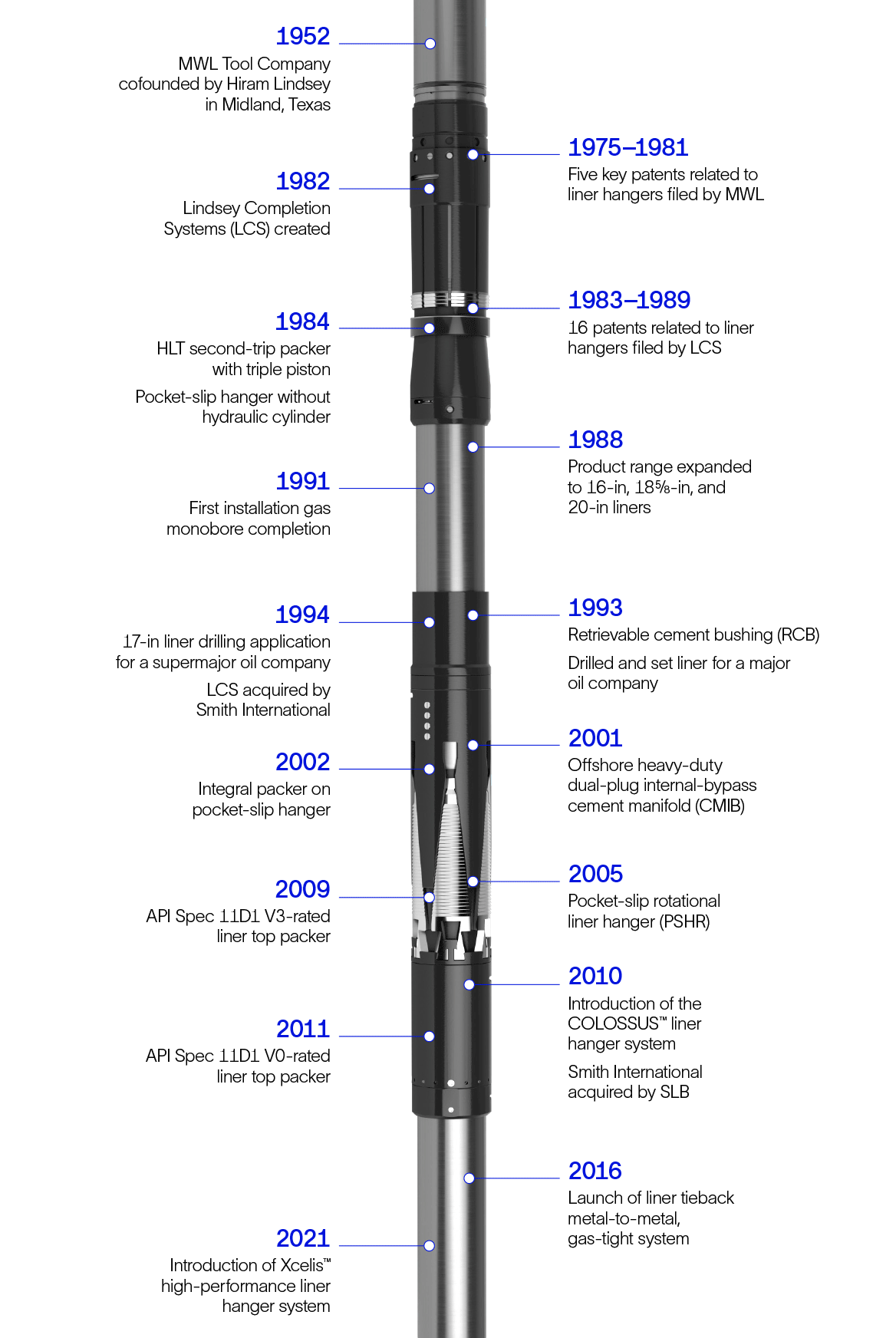

XCELIS high-performance liner hanger systems are built on a strong liner hanger engineering pedigree that stretches back to 1952. To date, Schlumberger has performed more than 25,000 installations with a track record of >99.5% operating efficiency.
1952
MWL Tool Company develops the liner hanger in Midland, Texas
>25,000
Liner hangers installed
99.5%
Installation efficiency worldwide

Liner hanger system equipment

Enhance well stability and protect the casing with cemented and uncemented liner hanger systems that suit a wide range of well conditions.

Liner Hanger Systems

  • Slips extended
    Xcelis
    High-performance liner hanger systems

    Engineered for the most challenging well environments View

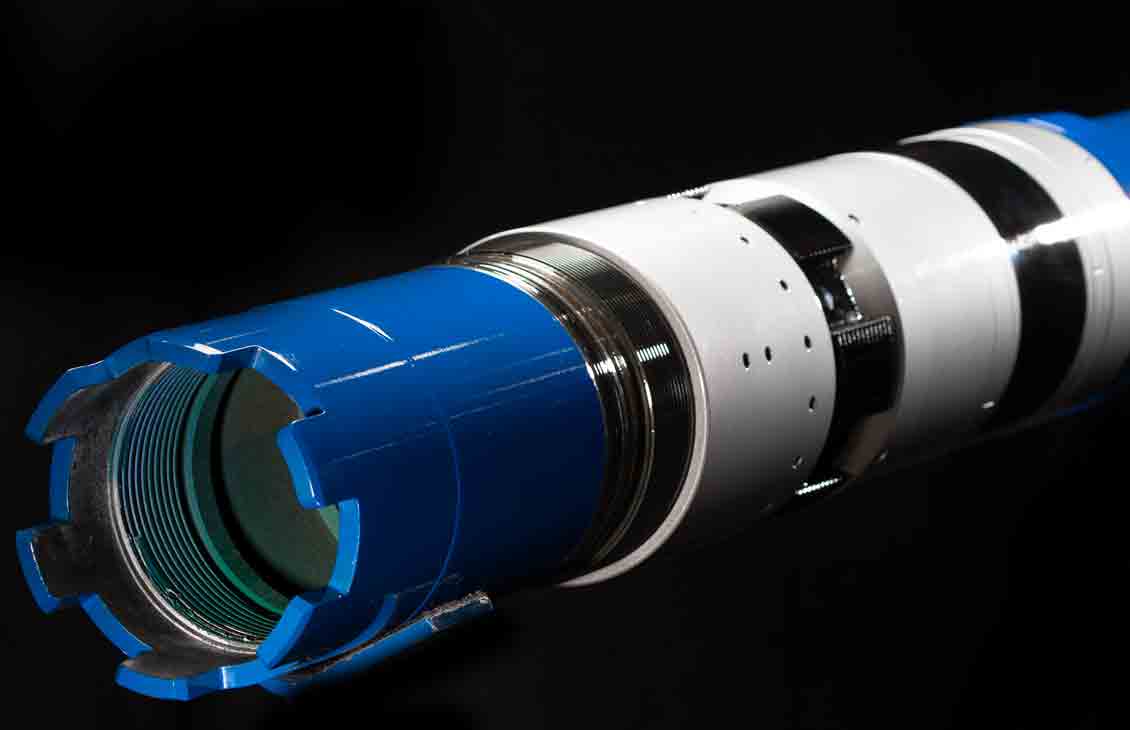

  • COLOSSUS UNC uncemented liner hanger system
    COLOSSUS
    Liner hanger systems

    Enhance well stability and protect the casing. View

Liner Hangers

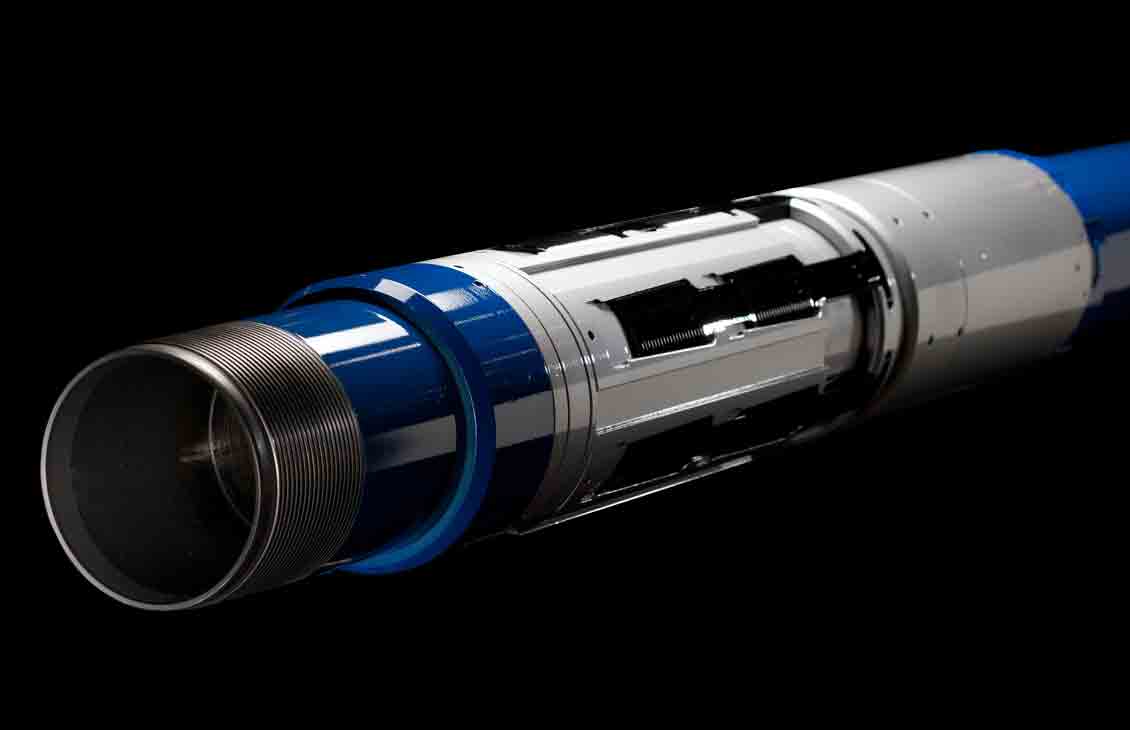

  • HCHR high-capacity hydraulic rotating liner hanger
    HCHR
    High-capacity hydraulic rotating liner hanger

    Deploy heavy and long liners in drilldown applications, even in deep land, deepwater, and HPHT wells, to save time and enable rotation. View

  • Liner Hanger
    HPS
    Configurable hydraulic pocket-slip liner hanger

    Run long and heavy liners with confidence, even in HPHT conditions, with or without liner rotation during running or cementing. View

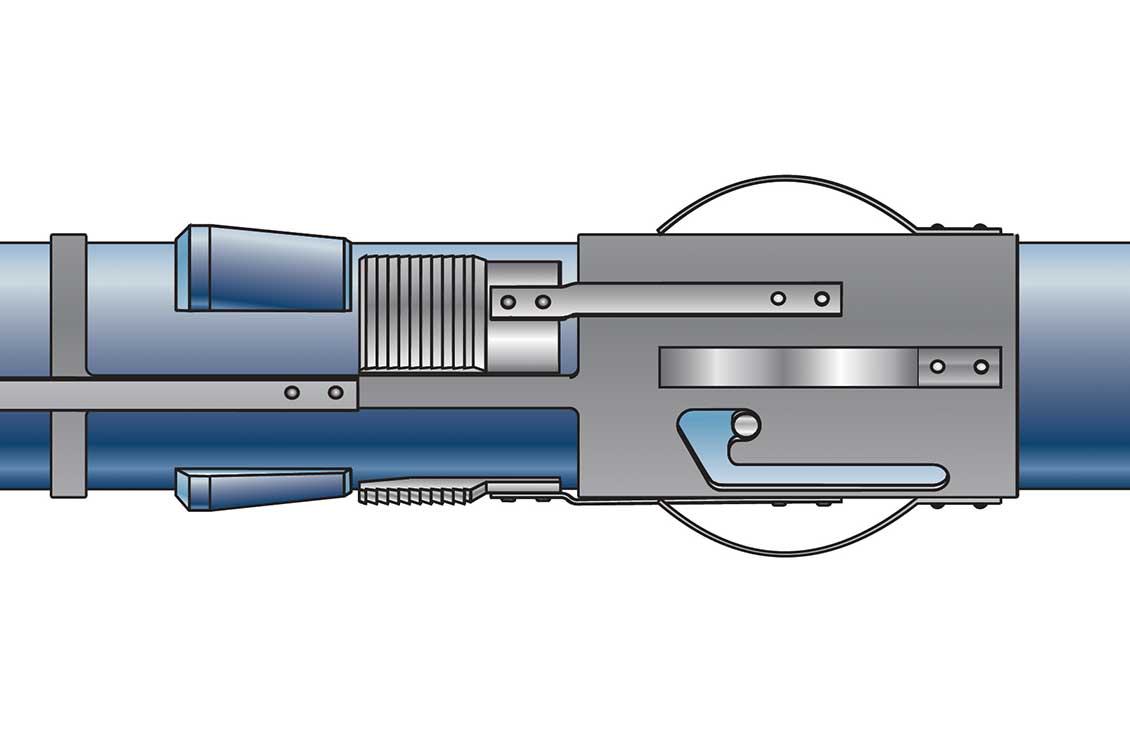

  • SBRD solid-body mechanical-set liner hanger
    SBRD
    Solid-body mechanical-set liner hanger

    Run light and medium-weight liners in wells where the workstring can be manipulated to set the hanger. View

Liner Top Packers

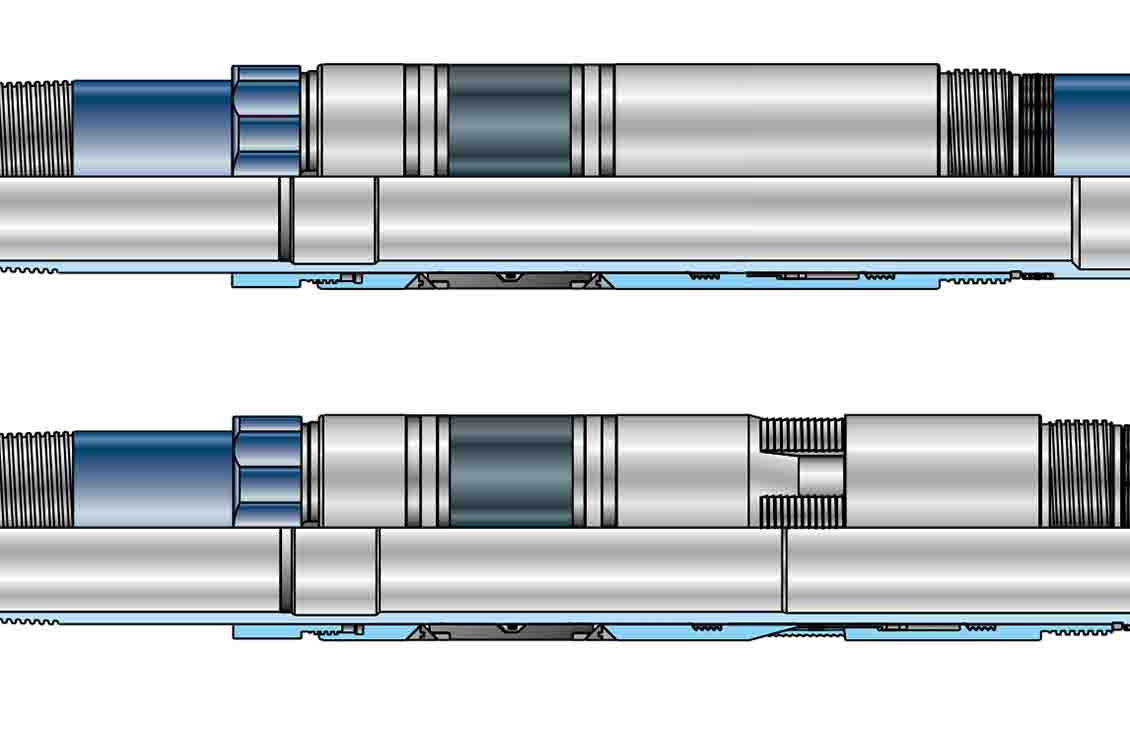

  • pv-3 packer
    PV-3
    Liner top packer with or without hold-down slips

    Choose a reliable packer rated to 10,000-psi [68.9-MPa] differential pressure. View

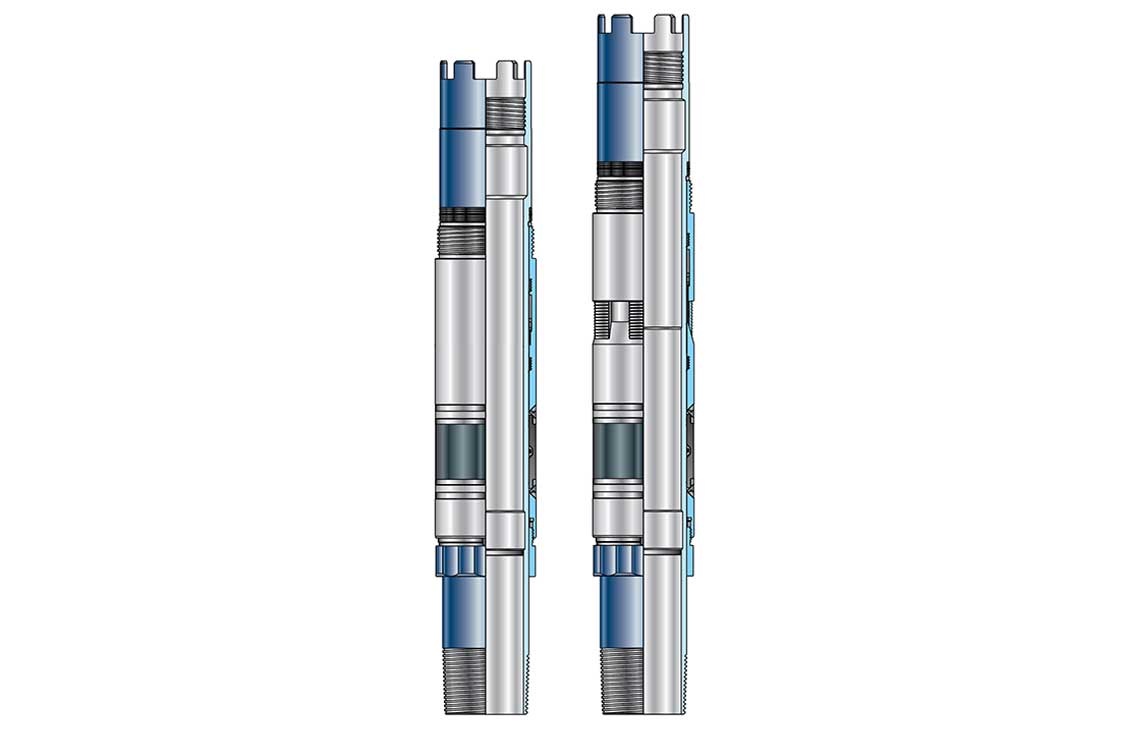

  • PV-0 high-pressure V0 liner top packer
    PV-0
    High-pressure V0 liner top packer

    Run this V0- or V3-qualified packer above the COLOSSUS CMT liner hanger system in HPHT wells to enable drilldown and rotation. View

Running Tools

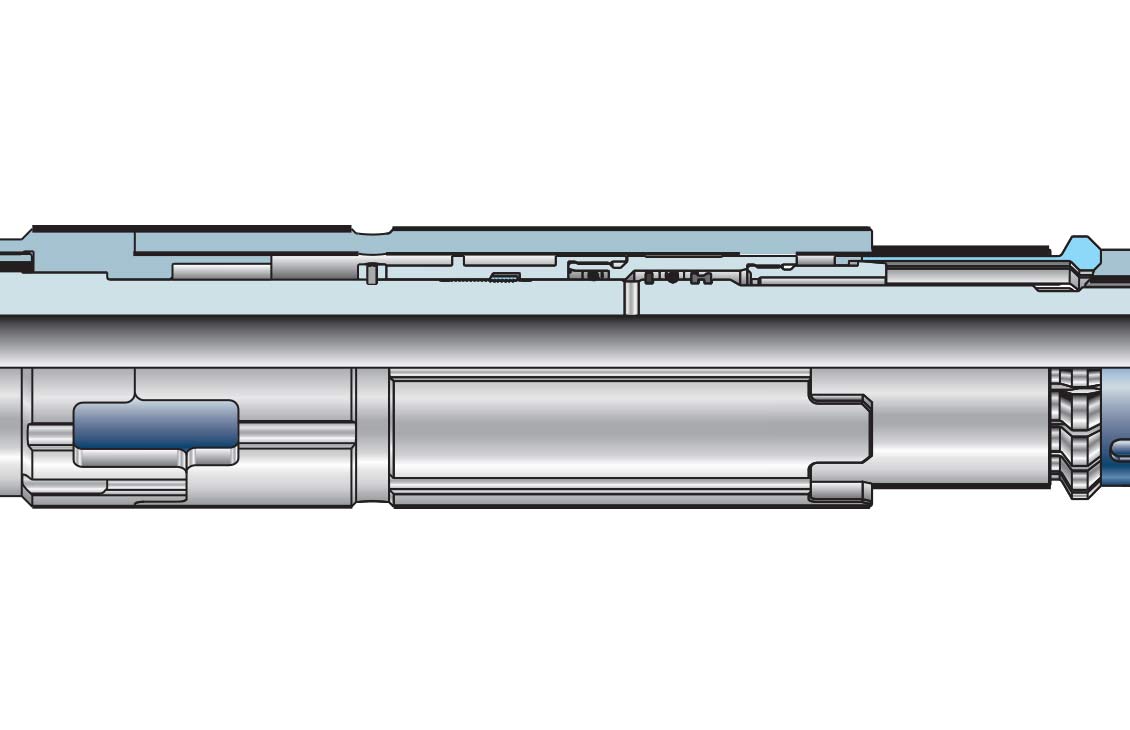

  • CRT Collet Running Tool
    CRT
    Hydraulic collet running tool

    Run liners and release without rotation—ideal in high-inclination wells. View

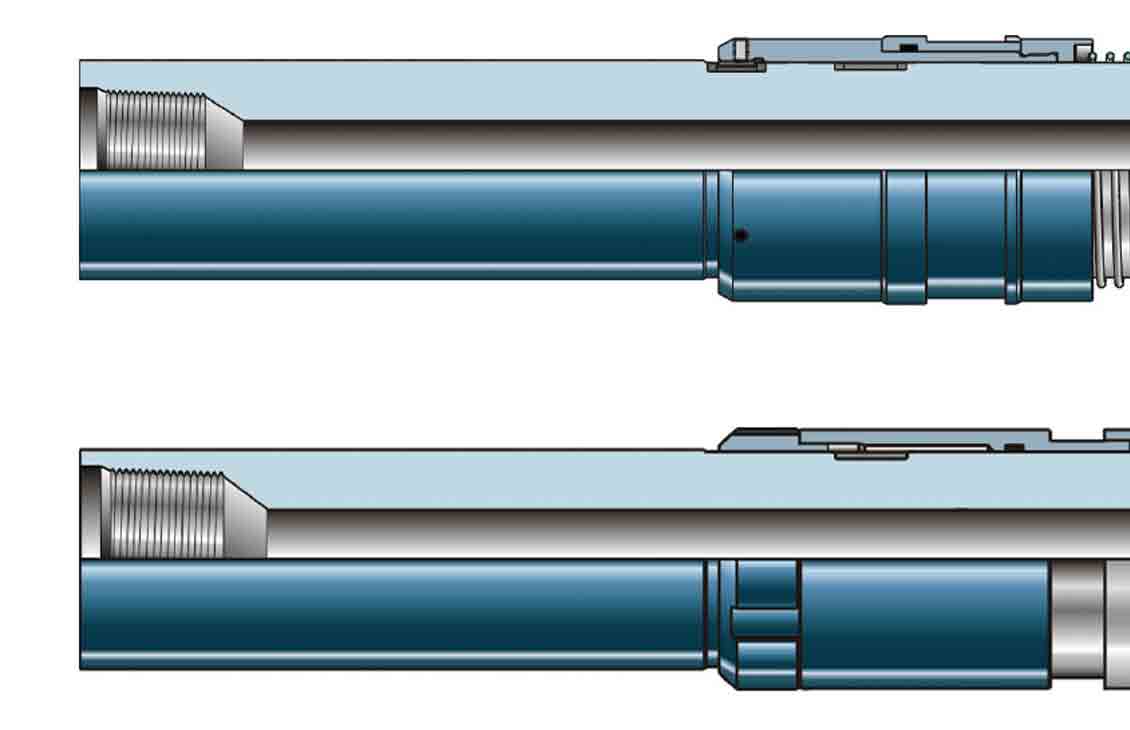

  • Right Hand Release Running Tool for COLOSSUS CMT and COLOSSUS UNC systems
    RRT
    Right-hand-release running tool

    Mechanically or hydraulically set liner hanger systems that require high torque to drill the liner. View

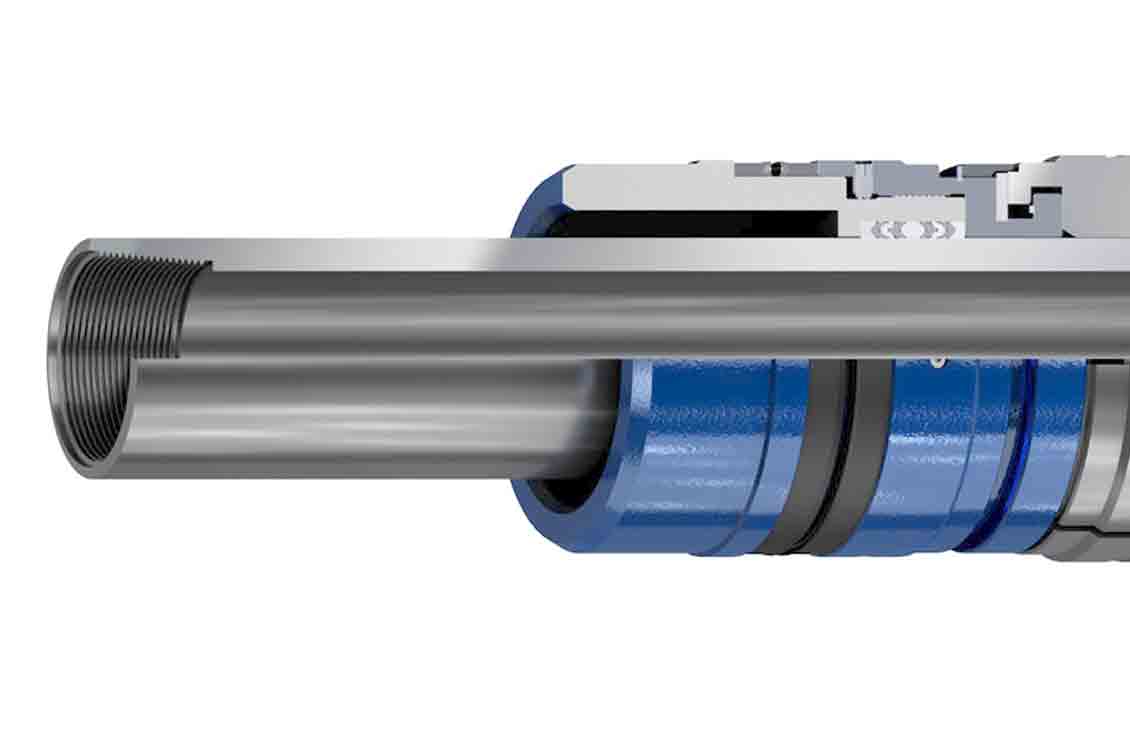

  • Retrievable Cement Bushing
    RCB
    Retrievable cement bushing

    Maintain pressure integrity for liner hanger and liner top packer operations. View

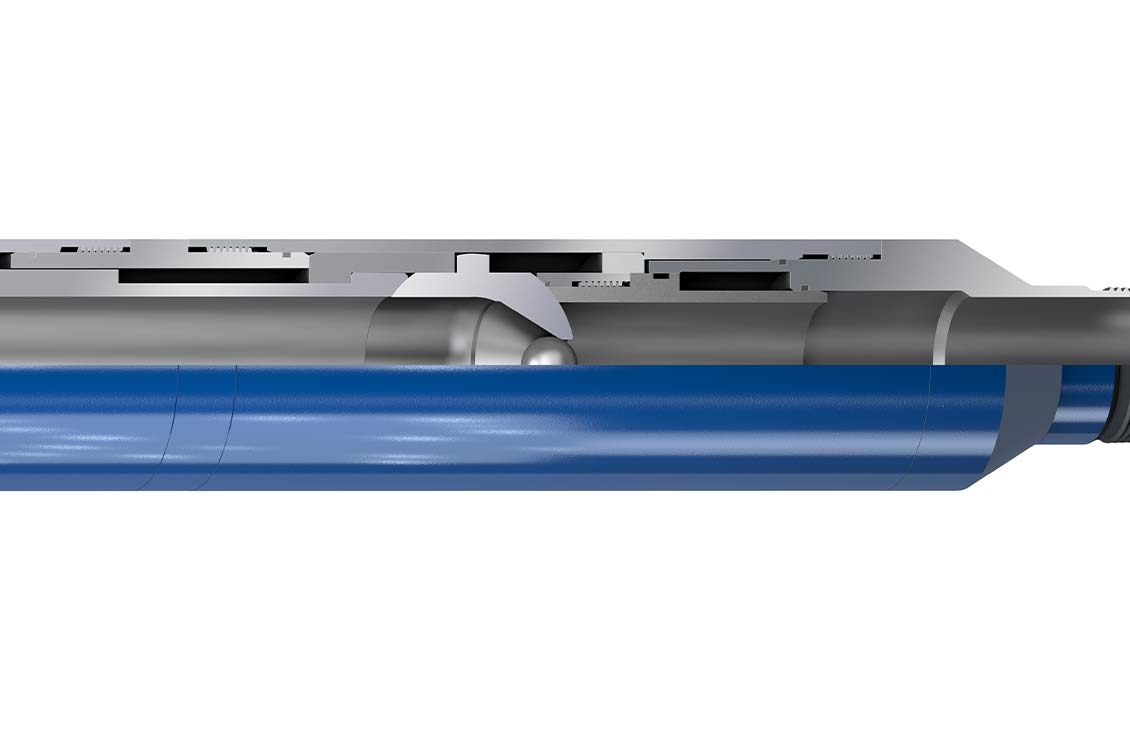

  • RBS Rotational Ball Seat for COLOSSUS CMT and COLOSSUS UNC Systems
    RBS Rotational Ball Seat
    Simplified running and setting

    Save time running and setting liner hanger systems, and reduce pressure surges. View

Integral Liner Hanger Packers

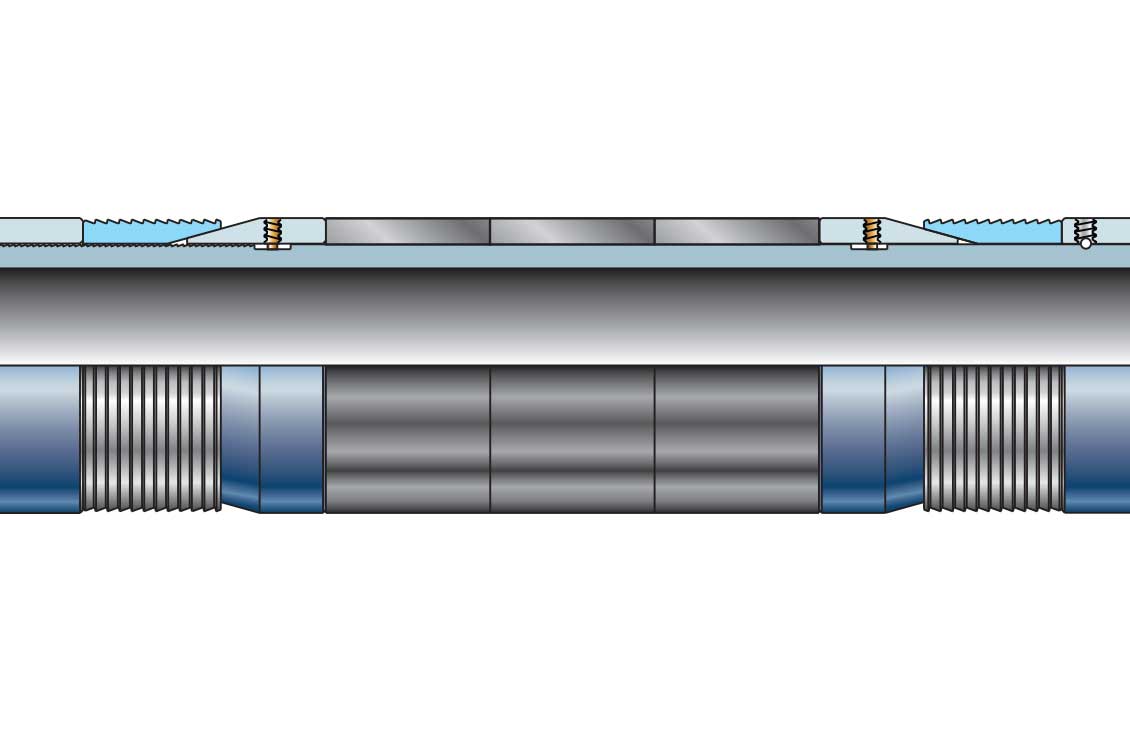

  • LRP Long Reach Liner Packer
    Long Reach
    Integral liner hanger packer

    Facilitate liner deployment with push, pull, and rotation capabilities ideal for high-temperature and thermal wells. View

Liner hanger expandable systems

Deploy long, heavy liners in challenging conditions—including deepwater, extended-reach, and HPHT wells—with expandable, metal-to-metal sealing for the life of the well.

  • Meta liner tieback gripping
    Integrated Liner Hanger Tieback System
    Metal-to-metal, gas-tight system

    Solve problems with long casing strings by connecting a liner to a tieback string with full V0-qualified casing integrity. View

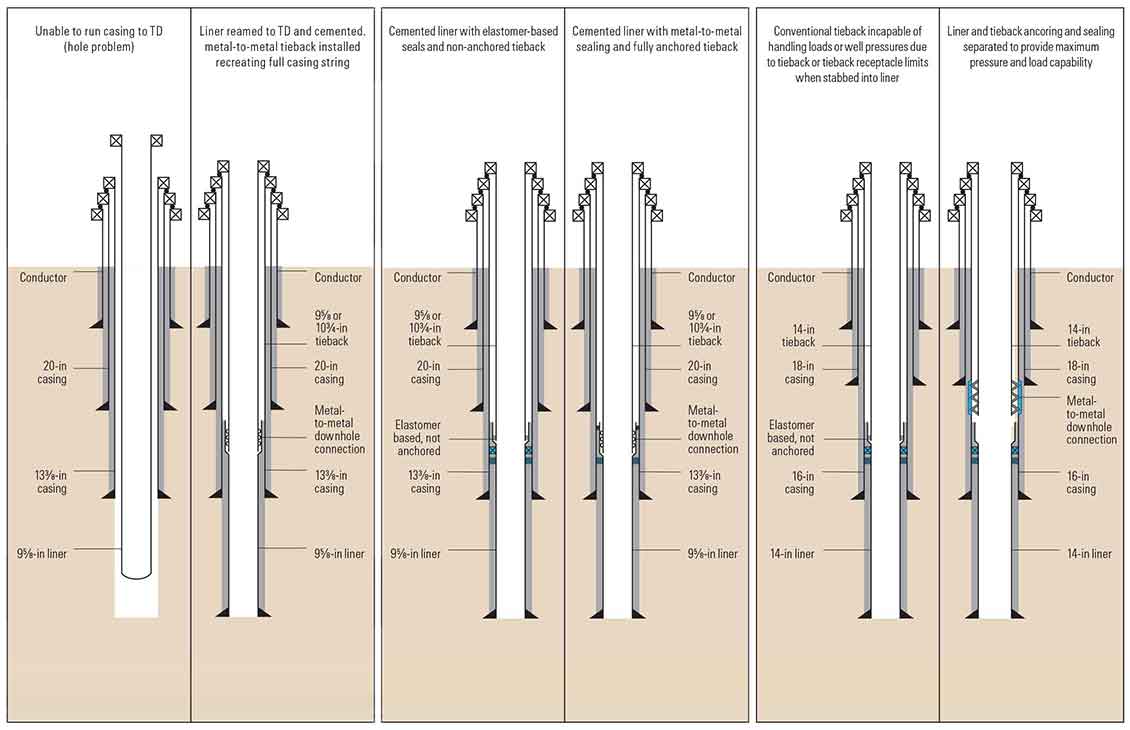

  • Liner Tieback Metal-to-Metal Gas-Tight Liner Tieback System
    Liner Tieback
    Metal-to-metal, gas-tight system

    Solve problems with long casing strings by connecting a liner to a tieback string with full V0-qualified casing integrity. View

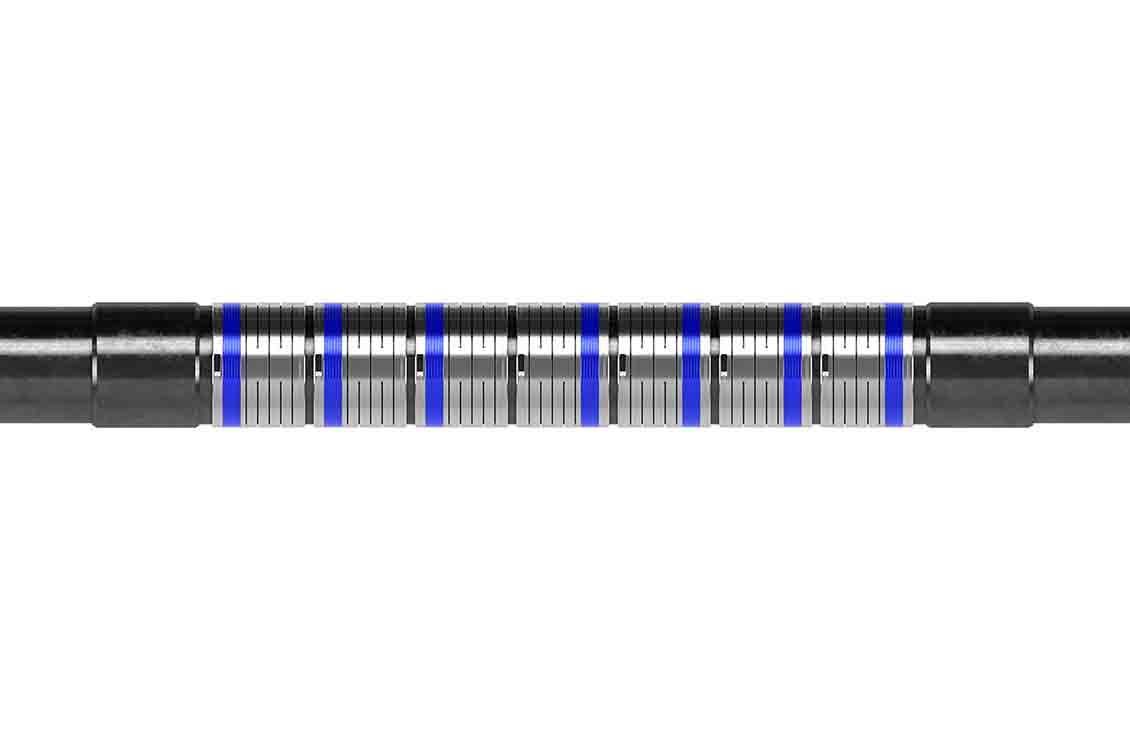

  • Load Anchor Metal-to-Metal Anchor
    Load Anchor
    Metal-to-metal tieback casing anchor

    Use conventional liner hanger systems with heavier axial loads by deploying an anchor that manages the loads. View

Liner Hangers for High-Temperature Thermal Applications

Manage the most challenging thermal applications—such as geothermal or steam assisted gravity drainage—with robust liner hangers designed for wells undergoing extreme temperatures and temperature cycling.

  • LHP 650 Dual-Grip, Thermal Hydraulic-Set Liner Hanger Packer
    LHP 650
    Dual-grip thermal hydraulic-set liner hanger packer

    Simplify installation with rotation and improve reliability in thermal applications with nonelastomer elements. View

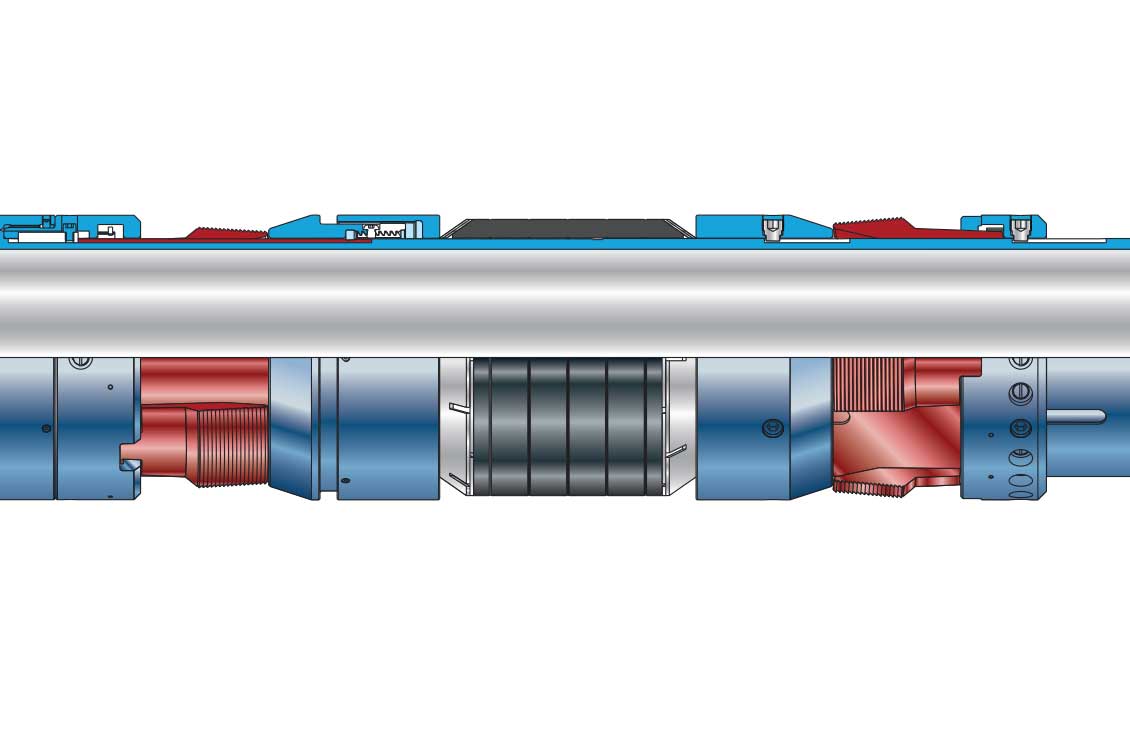

  • RLHP 650 Retrievable Dual-Grip Thermal Hydraulic-Set Liner Hanger Packer
    RLHP 650
    Retrievable dual-grip thermal hydraulic-set liner hanger packer

    Maximize isolation and flexibility with liner hangers in conditions that exceed temperature and pressure limits for elastomers. View

  • RLTP 650 Retrievable thermal hydraulic-set liner top packer
    RLTP 650
    Retrievable thermal hydraulic-set liner top packer

    Manage liner top debris, rotate into place, and keep fullbore access to the liner in thermal applications. View

  • RSLH 650 Retrievable Mechanically Set Scab Liner Hanger
    RSLH 650
    Retrievable mechanically-set scab liner hanger

    Reduce remediation costs in damaged thermal wells with a scab liner hanger designed to simplify and optimize repairs. View

  • RSLH-LS Long-stroke retrievable mechanically set scab liner hanger
    RSLH-LS
    Long-stroke retrievable mechanically set scab liner hanger

    Reduce remediation costs in damaged thermal wells with a scab liner hanger designed to simplify repairs and optimize cementing. View
