Permanent Downhole Gauges

Reservoir monitoring and control with downhole pressure and temperature data

Downhole permanent gauges.
Contact Us Related Resources Accessories

Our portfolio

Metris Express
Single-sensor permanent PT gauge
Noise-immune gauges with advanced bidirectional telemetry.
Metris Evolve
Permanent PT gauge
Proprietary enhanced silicon-on-insulator sensors for high-quality measurements, immune to electrical noise.
Metris Extreme
HPHT permanent PT gauge
Advanced quartz sensors for high-quality measurements and telemetry that provides immunity to electrical noise.
Metris Eclipse
B-annulus PT monitoring system
Continuous well integrity monitoring behind the production casing (in the B-annulus) in subsea wells.
View All

Case Study US Department of Energy and ADM Optimize Carbon Sequestration Using Multizonal Intelligent Completion

Real-time monitoring and control with modular completion equipment and Optiq fiber-optic solution.

Case Study 3D VSPs Simultaneously Recorded in Four Offshore Wells

Optiq Seismic solution reduces acquisition time by 88 days without deferred production, reducing CO2e.

Case Study Intelligent Completion System Boosts Oil Production by 41% in High-GOR Field

Integrated system maintains inflow balance across zones in each lateral to optimize hydrocarbon production for LUKOIL-Nizhnevolzhskneft, Caspian Sea.

Case Study Lukoil Saves USD 6.8 Million Using First Extended-Reach Intelligent TAML 5 Multilateral Well

Integrated technologies address numerous technical challenges in challenging oil rim environment in the Caspian Sea.

Improve reservoir production or injection control decisions for oil and gas wells to enhance ultimate recovery

Enhance the performance of your wells with gauges that incorporate the most recent innovations in transducers, fully welded assemblies, corrosion-resistant alloys, and robust electronic components. By monitoring your wells and reservoirs in real time, you’ll identify trends without having to conduct costly, risky, and time-consuming well interventions.

Metris systems—not yesterday’s downhole gauges

Schlumberger permanent downhole gauge technology has evolved from transmit-only devices providing pressure and temperature (PT) measurements at fixed time intervals into interactive systems that enable users to actuate a wide range of downhole completion equipment by using just one electric and two hydraulic lines.

Gauges belonging to the new family of Metris permanent monitoring systems use a single acquisition and diagnostics card that employs frequency division multiple access (FDMA) telemetry—also used by cellular telephones—for bidirectional communication to accommodate dynamic conditions. The card and telemetry combination enables

  • acquisition of PT measurements
  • immunity from any electromagnetic noise (e.g., from an ESP or other AC-powered devices)
  • deployment of more gauges on one monoconductor cable
  • elimination of limitations on distance between gauges
  • selective hydraulic actuation
  • prognostic health monitoring (PHM) of subsurface safety valve actuation
  • gauge, connector, cable, and acquisition system diagnostics.

Metris systems are a key component in intelligent completions systems, which maximize flexibility, simplify well design, increase reservoir contribution control using downhole interval control valves and reduce installation time and complexity. Intelligent gauges are the future, and the future is now.

Metris system gauges operating envelope
Metris Evolve, Metris Extreme, and Metris Express gauges are available with various pressure and temperature ratings to suit your well conditions.
Metris system gauges operating envelope

Which permanent reservoir monitoring system is right for your wells?
Which permanent reservoir monitoring system is right for your wells? Technology Which permanent reservoir monitoring system is right for your wells? Max. Working Pressure, psi [MPa] Which permanent reservoir monitoring system is right for your wells? Max. Working Temperature, degC [degF] Which permanent reservoir monitoring system is right for your wells? Max. Sensors per Cable
Which permanent reservoir monitoring system is right for your wells? Metris Express gauge Which permanent reservoir monitoring system is right for your wells? 8,000 [55] Which permanent reservoir monitoring system is right for your wells? 121 [250] Which permanent reservoir monitoring system is right for your wells? N/A
Which permanent reservoir monitoring system is right for your wells? Metris Evolve gauge Which permanent reservoir monitoring system is right for your wells? 16,000 [110] Which permanent reservoir monitoring system is right for your wells? 150 [302] Which permanent reservoir monitoring system is right for your wells?16
Which permanent reservoir monitoring system is right for your wells? Metris Extreme gauge Which permanent reservoir monitoring system is right for your wells? 30,000 [207] Which permanent reservoir monitoring system is right for your wells? 204 [400] Which permanent reservoir monitoring system is right for your wells?16
Which permanent reservoir monitoring system is right for your wells? Metris Eclipse system Which permanent reservoir monitoring system is right for your wells? 15,000 [103] Which permanent reservoir monitoring system is right for your wells? 150 [302] Which permanent reservoir monitoring system is right for your wells?1 + 12
Which permanent reservoir monitoring system is right for your wells? FloWatcher system Which permanent reservoir monitoring system is right for your wells? 25,000 [172] Which permanent reservoir monitoring system is right for your wells? 204 [400] Which permanent reservoir monitoring system is right for your wells?3 + 12

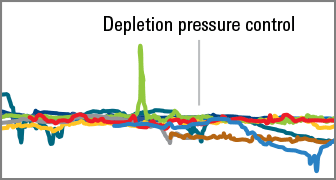

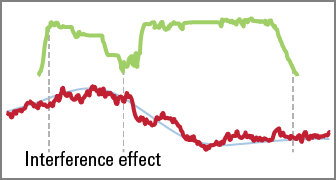

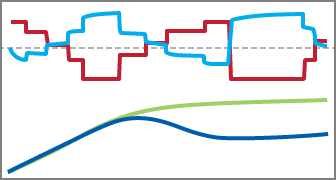

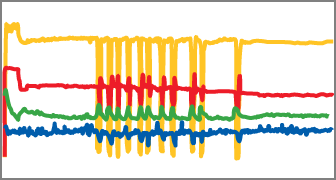

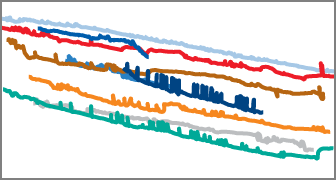

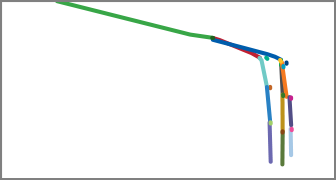

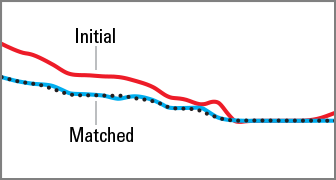

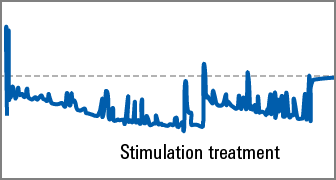

Applications

Leverage proven reliability and metrology for a wide range of applications.
