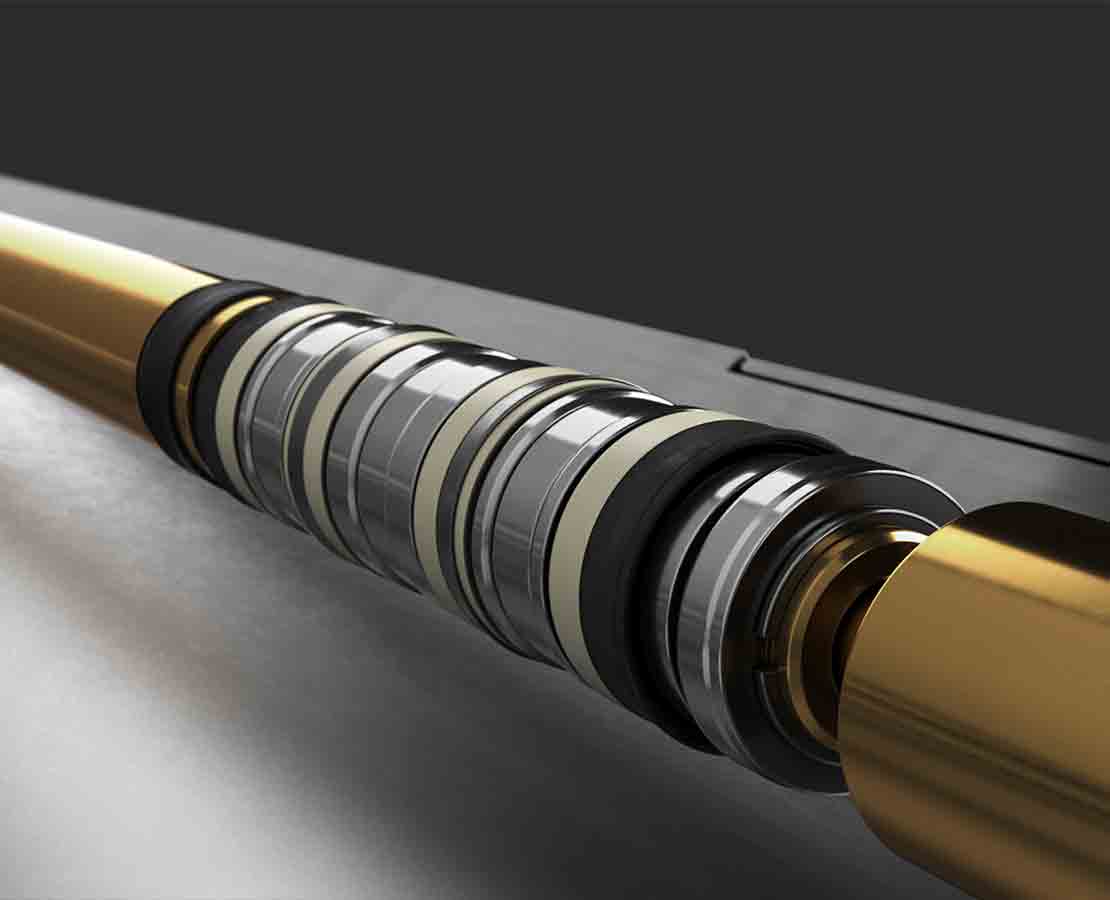

3D rendering of GeoGuard high-performance deepwater safety valve

Subsurface Safety Valves

API Spec 14A–certified protection of people, environment, and assets

GeoGuard

High-performance deepwater subsurface safety valves
Suitable for extreme setting depths in the subsea environment

SLIMTECH

Reduced-OD subsurface safety valves
Capable of very high slam closure rates that are ideal for big-bore gas applications

TRMAXX

Standard spring subsurface safety valves
To be utilized for both land and offshore environments to shallow to deep-set applications

Recovery

Secondary insert subsurface safety valves
Capable of extending the life of the completion with a disabled tubing-retrievable valve

Maximize reliability and performance with innovative seal technology for oil and gas wells

Surface-controlled subsurface safety valves (SCSSVs) are critical components of well completions, preventing uncontrolled flow in the case of catastrophic damage to wellhead equipment. Fail-safe closure must be certain to ensure proper security of the well. However, this is not the only function in which it must be reliable—the valve must remain open to produce the well. Schlumberger surface controlled subsurface safety valves exceed all ISO 10432 and API Spec 14A requirements for pressure integrity, leakage acceptance criteria, and slam closure.

Through decades of innovation and experience, Schlumberger safety valve flapper systems are proven robust and reliable. The multizone dynamic seal technology for hydraulic actuation of subsurface safety valves is a further improvement in reliability performance when compared with traditional seal systems in the industry.

The multizone seal technology was developed and proved with exhaustive verification and validation of reliability, longevity, and performance. The validation methodology utilized a unique sapphire crystal bore, enabling the design team to view the seal’s dynamic and static performance in real time while simulating wellbore pressure and temperature conditions.

The multizone seal technology is currently available in the GeoGuard high-performance deepwater safety valves, which is validated to API Spec 14A V1 and V1-H.

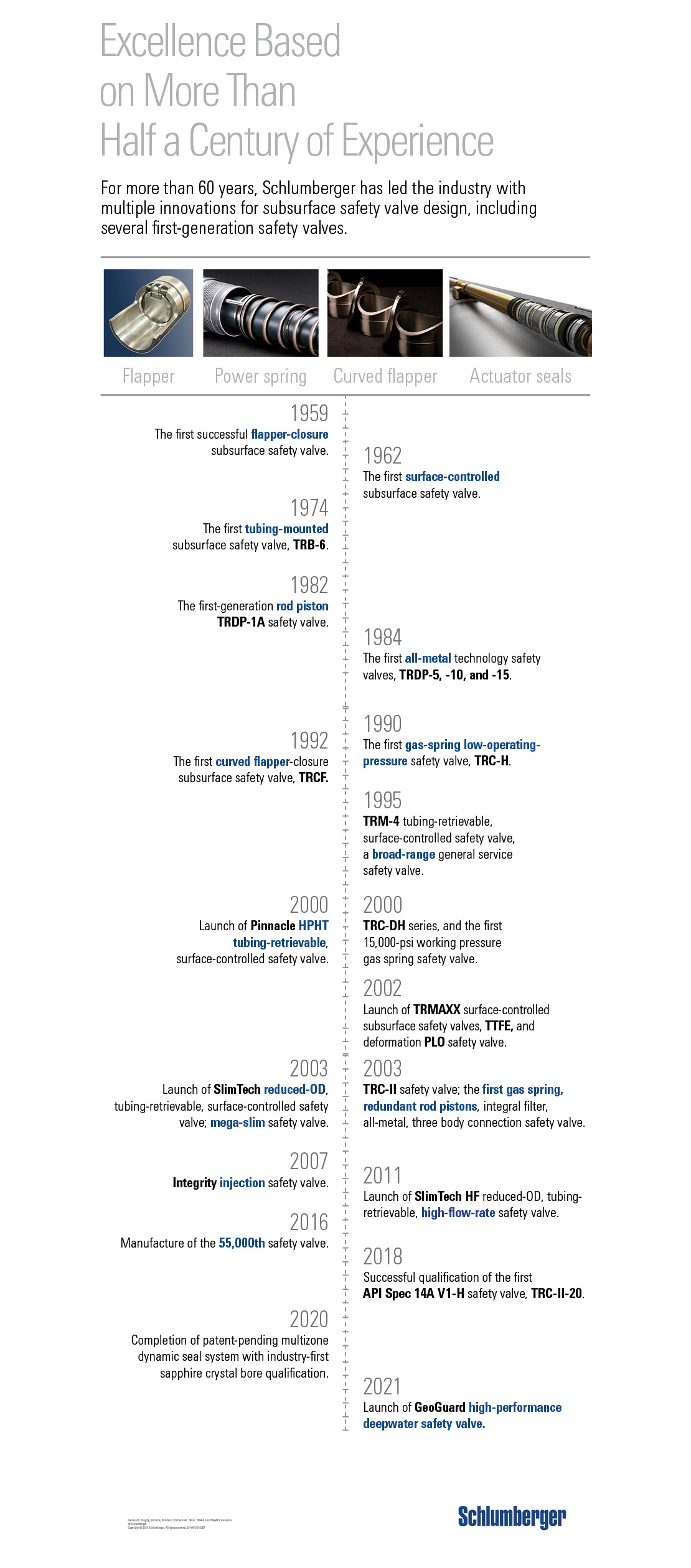

Graphic displaying Safety Valves timeline.

A subsurface safety valve manufacturer with decades of deepwater experience

Since the late 1950s, Schlumberger has led the industry in surface-controlled subsurface safety valve design innovations. We’ve achieved many industry firsts, from the first valve to utilize a flapper to the first low-operating-pressure gas spring valve for ultradeep water. As the pioneer of deepwater safety valves, we have continually improved our designs through consistent innovation.

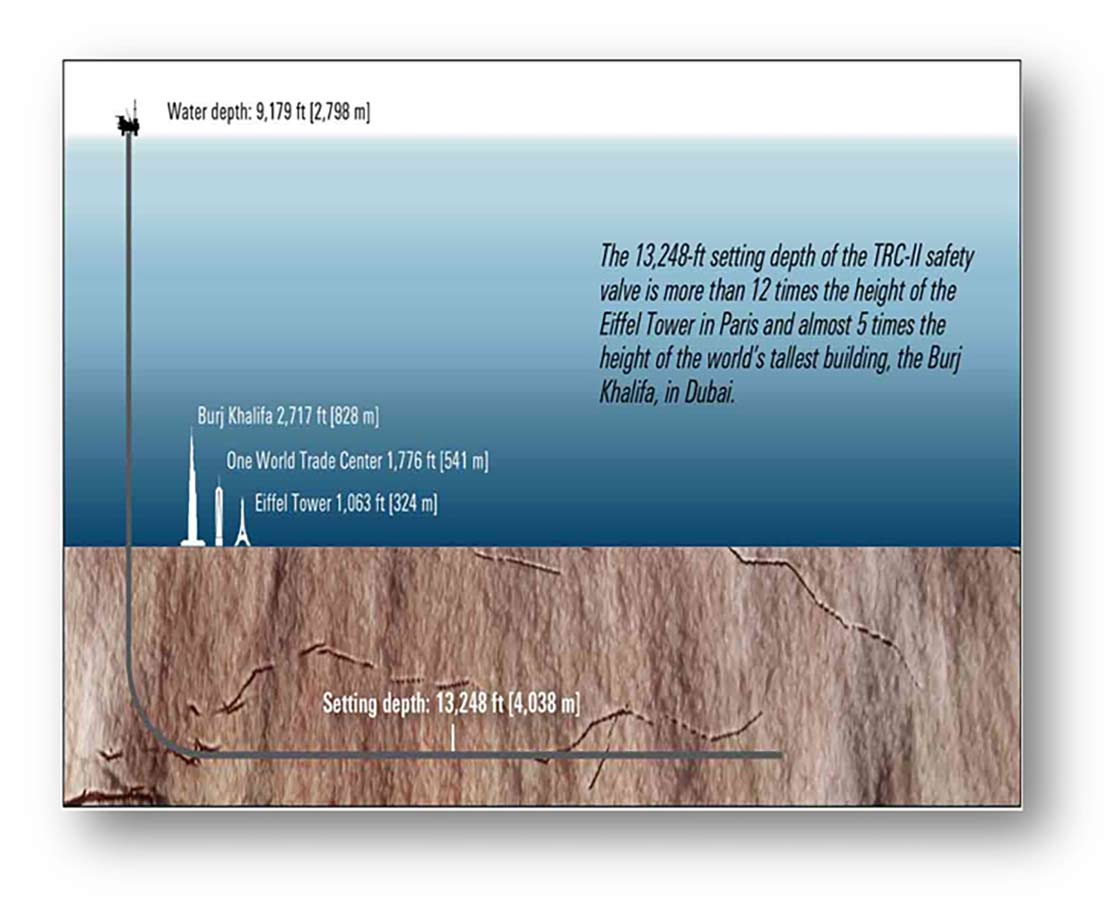

Setting depth flexibility

Our API Spec 14A V1–certified subsurface safety valve portfolio offers operational flexibility to overcome any challenge in the industry. Multiple actuation options are available for shallow-, deep-, and ultradeep-set applications.

Which subsurface safety valve actuation type is best for your application?

Standard spring valves are suitable for shallow-set (100 ft below the surface or mudline) and deep-set applications (up to 6,000-ft TVD). These valves use basic hydraulic actuation systems that are tubing pressure sensitive and remain fail-safe closed without requiring tubing pressure assist in closure.

For deep-set (6,000- to 10,000-ft TVD) and ultradeep-set (beyond 10,000-ft TVD) applications, there are both balanced-line and nitrogen-charged hydraulic actuation systems available. These unique systems are tubing pressure insensitive, so they can be operated at pressures below tubing pressure while remaining fail-safe closed.

Safety Valve Specifications

Product	Fail Safe Setting Depth, ft	Size, in	Max. Pressure, psi	Working Temperature, degF	API Spec 14A Certification
Tubing Retrievable
GeoGuard	>15,000	4 1/2, 5 1/2	20,000	35–350	V1 and V1-H
TRC-II	>13,500	4 1/2, 5 1/2	20,000	40–350	V1
Pinnacle	5,000	2 7/8, 3 1/2, 4 1/2	20,000	40–417	V4-2 and V2
SlimTech	6,000	7	10,000	40–300	V1
TRMAXX	6,000	2 3/8, 2 7/8, 3 1/2, 4 1/2, 5 1/2	10,000	40–300	V1
TRM-4P and -4HP	6,000	2 3/8, 2 7/8, 3 1/2, 4 1/2, 5 1/2	10,000	40–300	V4-2 and V2
Reliance	1,500	2 7/8, 3 1/2, 4 1/2	5,000	40–300	Schlumberger standard^†
Wireline Retrievable
Recovery	6,000	2 7/8, 5 1/2, 7	10,000	40–300	V4-2 and V2
WRHP-15	5,000	2 3/8, 2 7/8, 3 1/2	15,000	75–350	V4-2 and V2
WRDP-1	>4,000	2 3/8, 2 7/8, 3 1/2, 4 1/2, 5 1/2, 7	15,000	40–300	V4-2 and V2
WRDP-2	4,000	2 3/8, 2 7/8, 3 1/2, 4 1/2, 5 1/2, 7	15,000	40–300	V4-2 and V2
Injection
Integrity	No limit	4 1/2, 5 1/2, 7	10,000	40–300	V3
TRTO	No limit	4 1/2	7,500	40–300	Schlumberger standard^†

Additional models and sizes may be available.
^†Designed and manufactured as per API Spec 14A but not third-party certified.
GeoGuard high-performance deepwater safety valves coming 2021.
